DS® DESIGN SYSTEM

Elegant and aesthetically pleasing hand drawn rail system for all types of medium weight draperies. Only available at Forest!

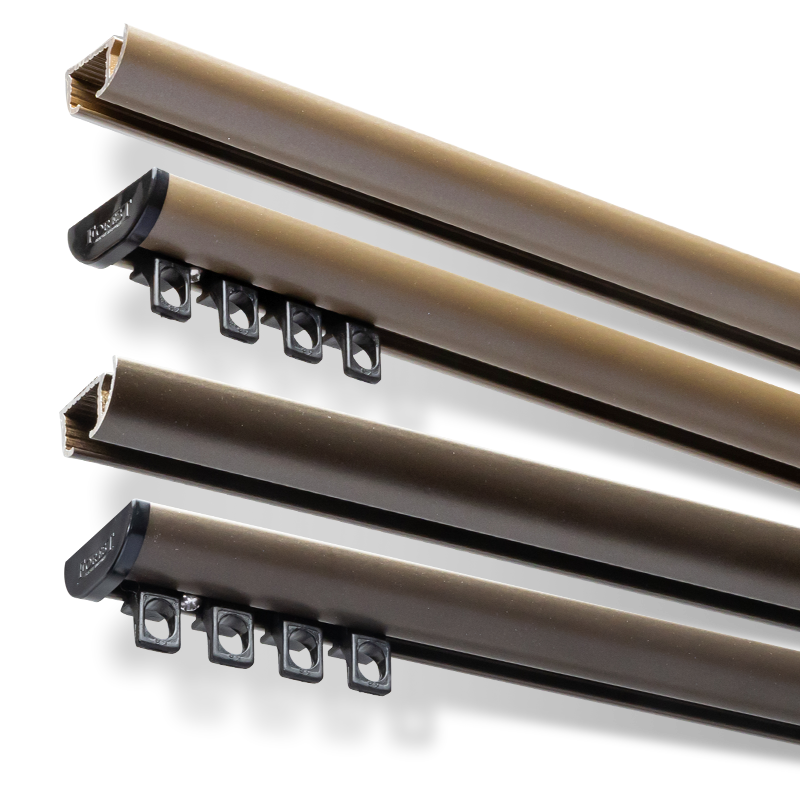

THE ELEGANT DS® TRACK

The DS® track is a stylish choice for those looking for something unique in their interior. With its compact size and elegant, round shape, this design rail offers a distinctive look.

  • Colours: matt white, white, grey, anthracite, matt black, and black
  • Thanks to our dry lubricant, the curtains always glide smoothly and silently
  • The DS® track can be bent.

Recommendation: we recommend using our FES system for wave pleats in combination with the DS® rail, as this enhances the overall appearance of both the rail and the curtains. A standard pleat is also possible.

DS, Design System
DOWNLOAD
TECHNICAL SPECIFICATIONS
  • Weight: 170 grams per metre (1.83 oz/ft)
  • Dimensions: 12 mm x 24 mm (0.5’’ x 0.9’’)
  • Available lenghts: white in 4 m (13.1 ft), 5 m (16.4 ft), 6 m (19.7 ft) and 7 m (23 ft). Matt white, grey, anthracite and (matt) black in 6 m (19.7 ft)
  • Maximum load: 8kg per metre (5.4 lbs/ft)
  • Made from high quality aluminum
  • Track finish: chromated powder coating
  • UV protected
PROFILE

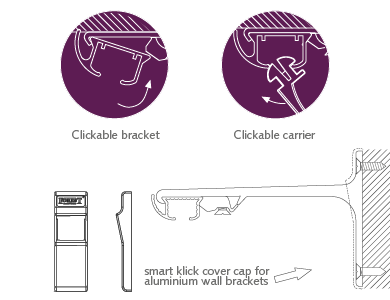

BRACKETS AND CARRIERS

All KS® brackets and carriers are also compatible with the DS®, including the Smart Klick brackets and carriers. With these brackets, you ‘klick’ the rail into place effortlessly. In addition, you can click the Smart Klick carriers into the rail afterwards, without having to remove the rail.

You have the option to mount the rail invisibly to the ceiling using the ceiling bracket. For the Smart Klick brackets, there are cover caps available for a clean finish.

Tip: asymmetrical carriers allow the curtain to hang further outward, resulting in a tighter and more streamlined appearance. To view all carriers fort he DS®, you can download the brochure.

BENDING

The DS® rail is highly flexible, making it a versatile design rail. It can be bent with a radius of 10 cm. Curves with a larger radius can be bent using the electric bending device. Bending for bay windows is also possible upon request.

APPLICATIONS
FOR USE IN

Hotels - offices - schools - healthcare - residences - boats - campers - planes or at any location where an elegant efficient hand drawn system is required.

DS-XL® and DS-XL® LED

Are you looking for a design with a little more impact? Then the DS-XL® is a great option. This is the larger version of the DS®. Like the DS®, this track features round shapes, but it is significantly wider, making it stand out more. The DS-XL® also comes in a version with LED lighting: the DS-XL® LED. This is a manually operated track with a built-in LED strip, allowing you to add extra ambiance to the space.

MORE ABOUT THE DS-XL® (LED)
